SAP S/4HANA Work Process Monitoring and Runtime Error Investigation

This portfolio project demonstrates the use of SAP Basis monitoring and troubleshooting tools to analyse system activity, assess work process availability, and investigate recurring runtime errors within an SAP S/4HANA sandbox environment.

T-Code / Command

SM50 / SM66 / ST22

System

SAP S/4HANA Sandbox

Objective

Work process review and runtime error investigation

Operational Scenario

An SAP S/4HANA sandbox environment required a structured review of work process activity and an investigation into recurring runtime exceptions reported through ST22.

Business Impact

If unresolved, recurring runtime dumps of this nature could lead to transaction failures, application instability, increased support workload, and reduced user productivity.

/ Tools Used

SM50 – Local Work Process MonitoringSM66 – Global Work Process OverviewST22 – Runtime Error Analysis

/ Step-by-Step Execution

SM50 – Local Work Process Monitoring

The investigation began with a review of work process activity on the local application server using transaction SM50. The objective was to assess dialog work process availability and determine whether the local instance showed signs of work process exhaustion or abnormal activity.

sap gui

abap>/nSM50


Operational Observation

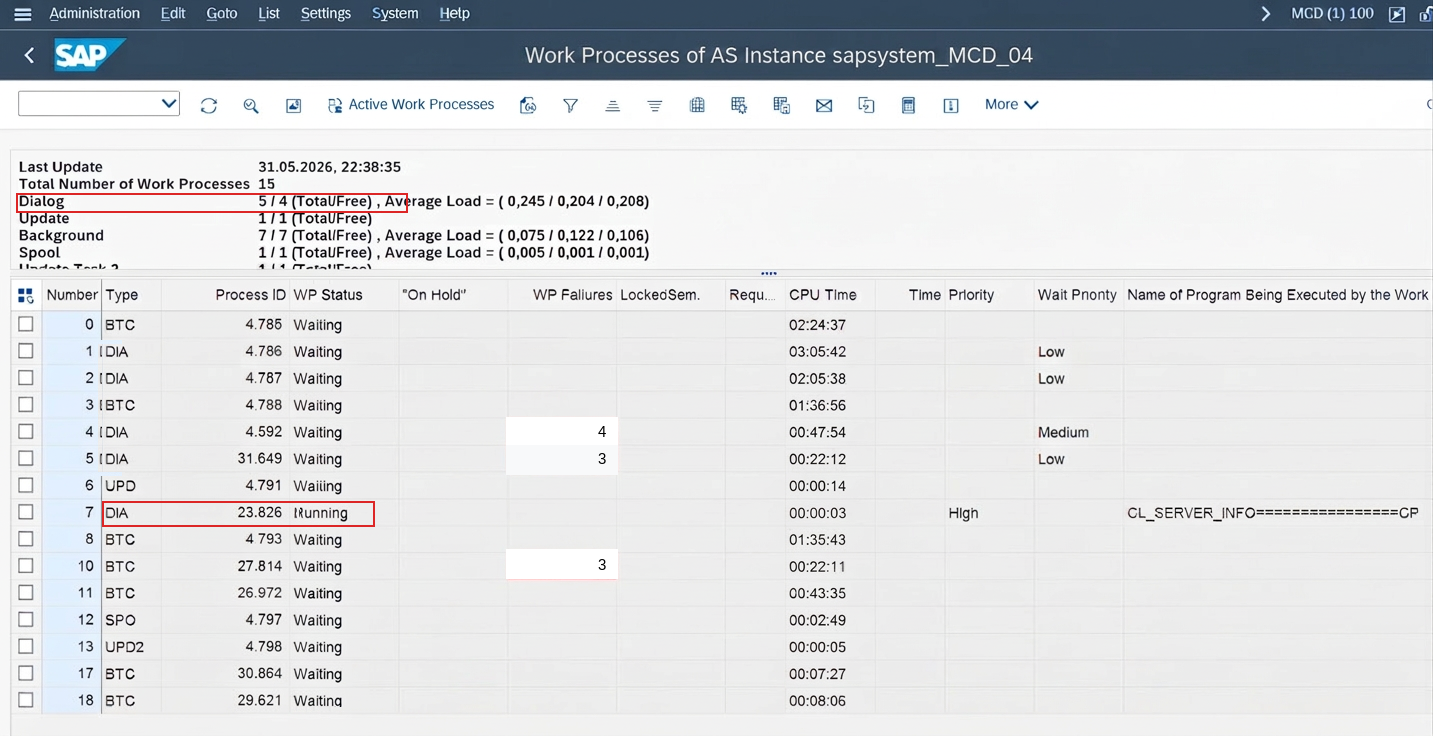

The SM50 overview showed the work processes for application server instance sapsystem_MCD_04. The summary indicated 5 DIA work processes, with 4 shown as free, while one DIA work process was running at the time of observation. The available dialog work processes indicated that the instance was not experiencing current dialog work process exhaustion during the review period. Historical values were also visible in the WP Failures column and should be treated separately from current work process availability.

Next Action

Expand the investigation to the system-wide work process overview using SM66 to determine whether abnormal work process activity was present across other application server instances.

SM66 – Global Work Process Overview

Transaction SM66 was then used to review work process activity across the SAP system. The objective was to determine whether the condition observed at the local application server was isolated to that instance or represented a wider system-level work process issue.

sap gui

abap>/nSM66


Operational Observation

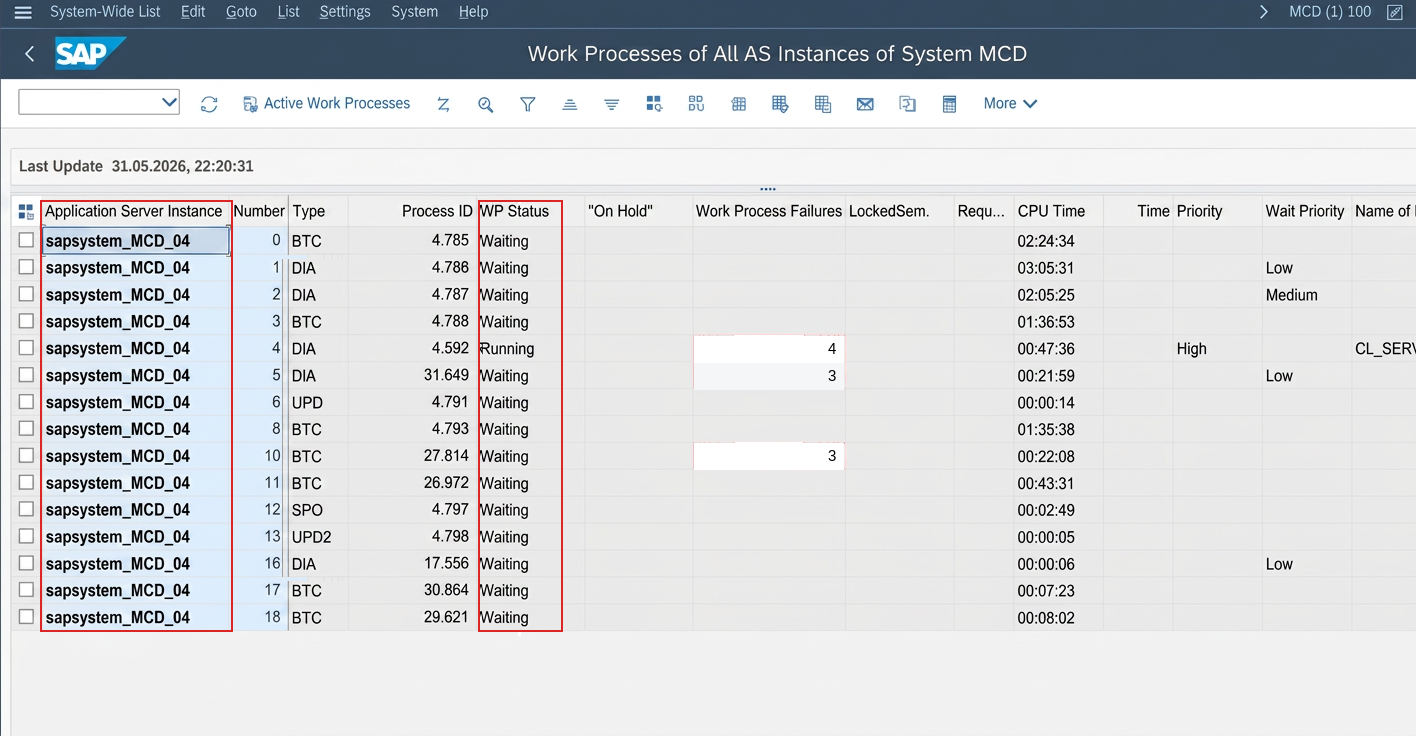

The global work process overview was reviewed to assess activity across the available application server instances. No obvious indication of widespread work process saturation was observed during the captured review. The SM50 and SM66 reviews therefore provided no indication that work process capacity was the primary factor behind the runtime errors under investigation.

Next Action

Proceed to ST22 to identify and analyse the runtime errors occurring within the system.

ST22 – Runtime Error List

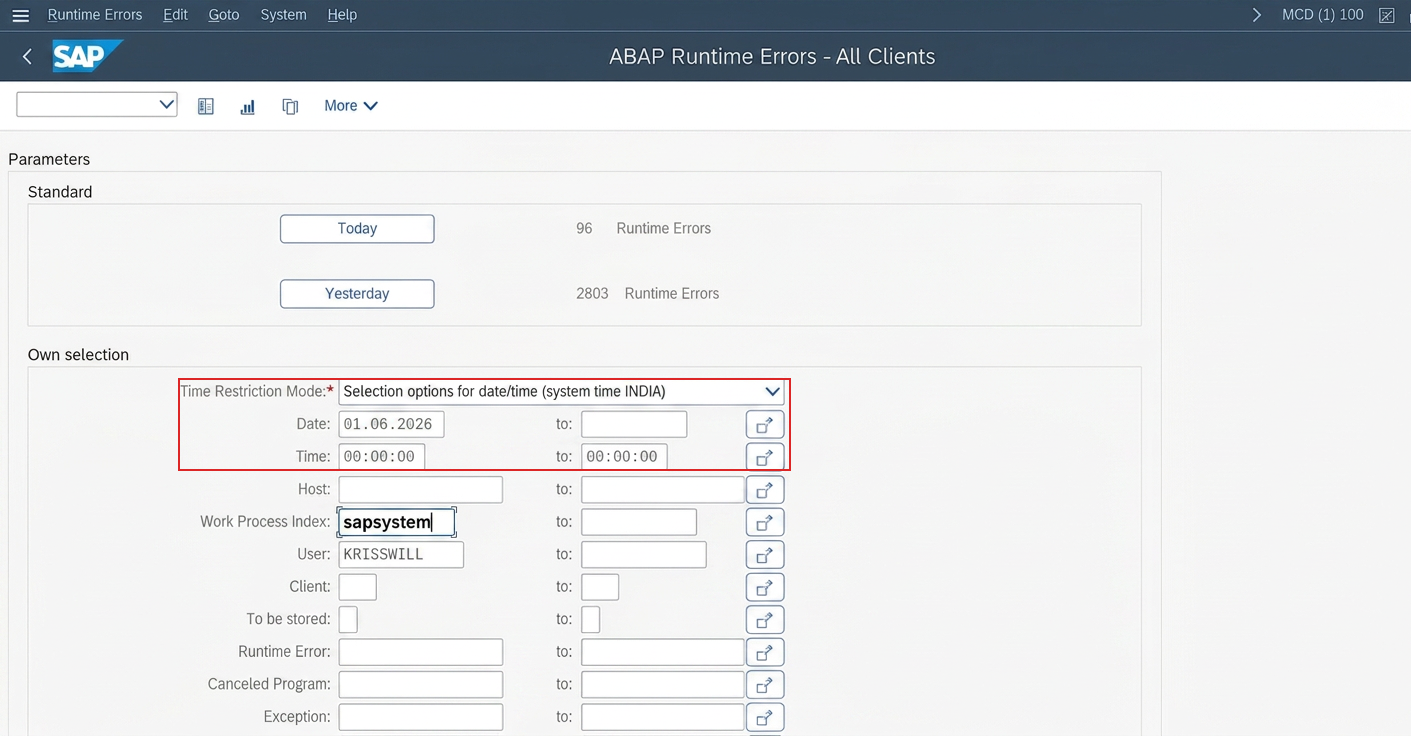

Transaction ST22 was reviewed to identify recurring runtime errors within the system. The selected search returned a high number of runtime errors, with repeated occurrences of GEN_PROGRAM_NOT_EXISTS.

sap gui

abap>/nST22



Operational Observation

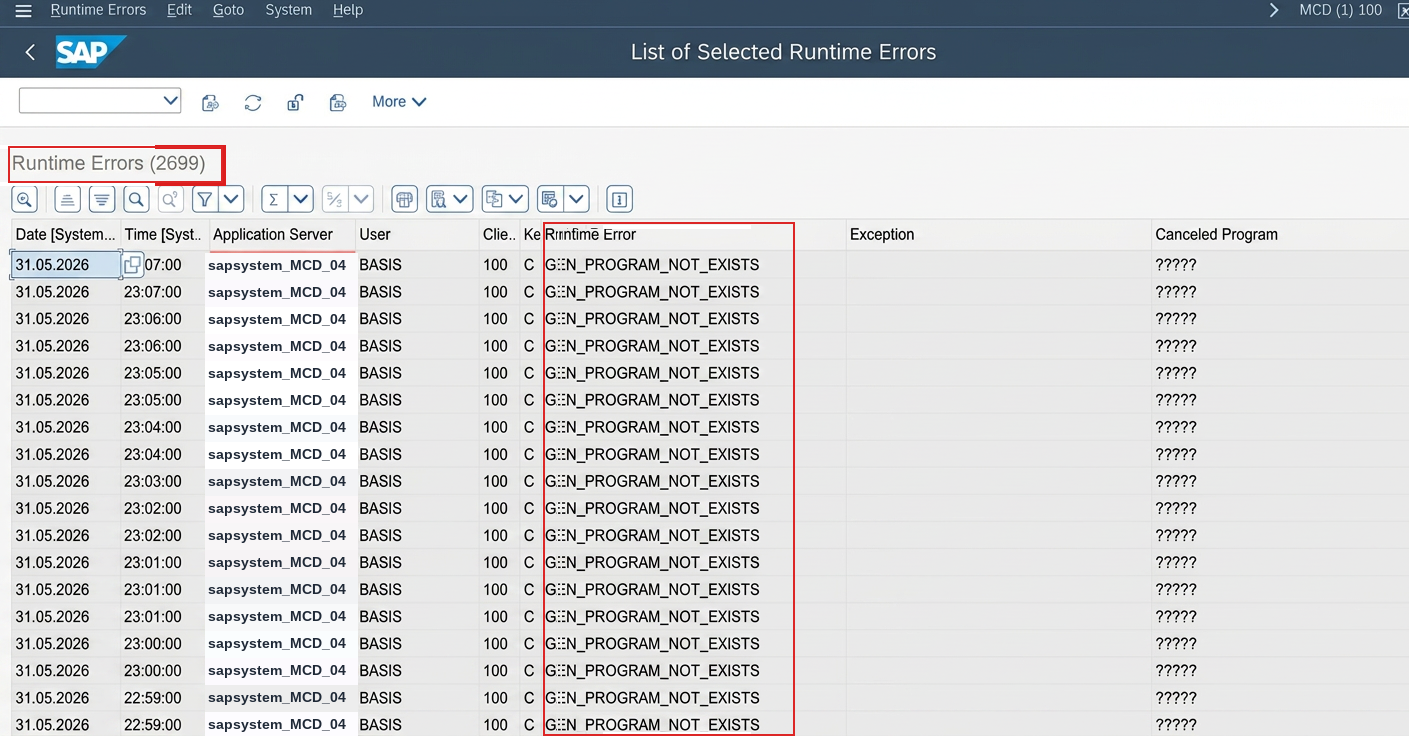

The selected ST22 search returned 2,699 runtime errors. The results showed repeated occurrences of the runtime error GEN_PROGRAM_NOT_EXISTS, including multiple entries associated with application server instance sapsystem_MCD_04. The repeated occurrence indicated that the error was persistent within the selected results rather than an isolated runtime event.

Next Action

Open the runtime error and review the detailed ST22 long text to determine what occurred during program generation and identify the relevant technical information.

ST22 – Runtime Error Analysis

The runtime dump was analysed using the Error Analysis section within ST22.


Operational Observation

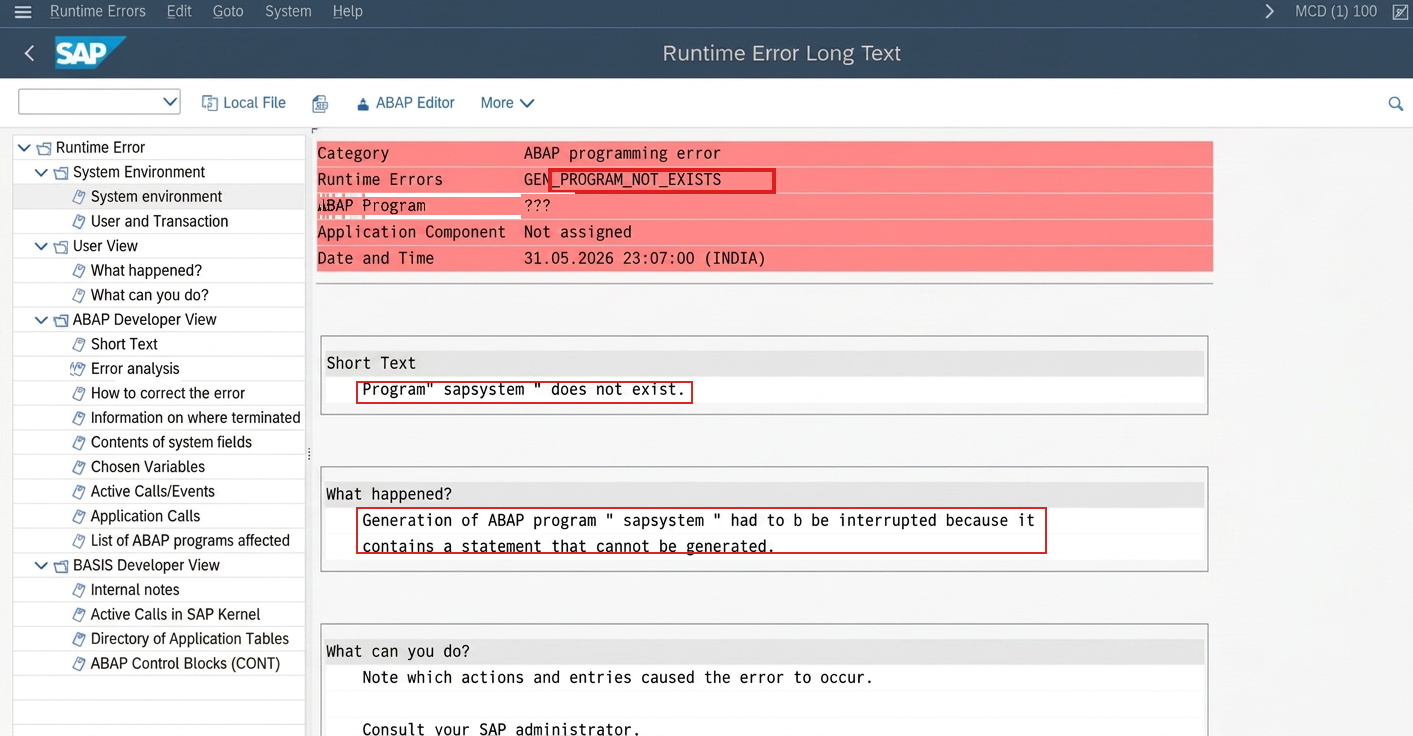

The ST22 long-text analysis identified the runtime error GEN_PROGRAM_NOT_EXISTS, classified as an ABAP programming error. The dump reported: Program sapsystem does not exist. The analysis further stated that generation of the ABAP program sapsystem had been interrupted because it contained a statement that could not be generated. This evidence points toward an ABAP program-generation or repository-level issue rather than a current work process capacity problem.

/ Assessment

The investigation followed a local-to-global troubleshooting approach. SM50 was first used to assess work process availability on the local application server, followed by SM66 to review the wider system work process landscape. The available evidence did not indicate current dialog work process exhaustion or system-wide work process saturation during the observation period. ST22 subsequently identified repeated GEN_PROGRAM_NOT_EXISTS runtime errors. The detailed dump analysis reported that program sapsystem did not exist and that its generation had been interrupted because of a statement that could not be generated. The findings therefore point toward an application-layer ABAP program-generation or repository-related issue rather than a work process capacity issue. The underlying cause should be confirmed through further investigation of the affected program, repository object status, generation status, and relevant system or transport changes.

/ Technical Interpretation

The investigation used a structured elimination approach: SM50 → SM66 → ST22. The local work process review established that dialog capacity was available on the observed application server. The global work process review then provided a wider system-level perspective and did not indicate work process saturation during the observation period. With work process capacity not appearing to explain the reported condition, the investigation moved to ST22. The recurring GEN_PROGRAM_NOT_EXISTS errors and detailed dump information indicated an ABAP program-generation issue requiring application/repository-level investigation. The exercise demonstrates the separation of Basis infrastructure symptoms from application-level runtime errors while avoiding an unsupported assumption that the dump itself proves a single confirmed root cause.

/ Recommended Next Steps

• Identify the affected ABAP program and related repository objects.
• Review the complete ST22 dump details and application call information.
• Verify the activation and generation status of the affected objects.
• Review recent transports, repository changes, and system modifications.
• Regenerate affected program objects where technically appropriate.
• Monitor ST22 after corrective actions to confirm whether GEN_PROGRAM_NOT_EXISTS recurs.
• Escalate to the relevant ABAP/application team if the issue requires code-level correction.

/ Project Outcome

The investigation followed a structured SAP Basis troubleshooting methodology using SM50, SM66, and ST22. The local work process review in SM50 confirmed that dialog work process capacity was available on the observed application server. SM66 was then used to extend the assessment to the wider system landscape, with no indication of system-wide work process saturation during the observation period. ST22 identified 2,699 runtime errors in the selected results, with repeated GEN_PROGRAM_NOT_EXISTS occurrences. Detailed analysis showed that the runtime error involved the non-existent program sapsystem and an interrupted generation caused by a statement that could not be generated. The investigation therefore separated work process availability from the application-level runtime condition and established a preliminary technical direction for further investigation.
