SAP S/4HANA User and Role Administration

This portfolio project demonstrates the process of creating a SAP user account, assigning a business role, validating authorization status, and synchronizing user access using standard SAP security administration transactions. The exercise was performed in a SAP S/4HANA sandbox environment to demonstrate user onboarding and authorization management activities commonly performed by SAP Basis and Security administrators.

T-Code / Command
SU01 / PFCG
System
SAP S/4HANA Sandbox
Objective
User provisioning, role assignment, authorization validation, and user master synchronization

Operational Scenario

A new finance user was onboarded into the SAP S/4HANA environment. User master data was created, a standard SAP business role was assigned, authorization status was validated, and user master records were synchronized through user comparison processing.

Business Impact

Demonstrates the relationship between user master records, business roles, authorization profiles, and authorization synchronization processes used within SAP environments.

/ Tools Used

SAP GUISU01 – User AdministrationPFCG – Role Maintenance

/ Step-by-Step Execution

01

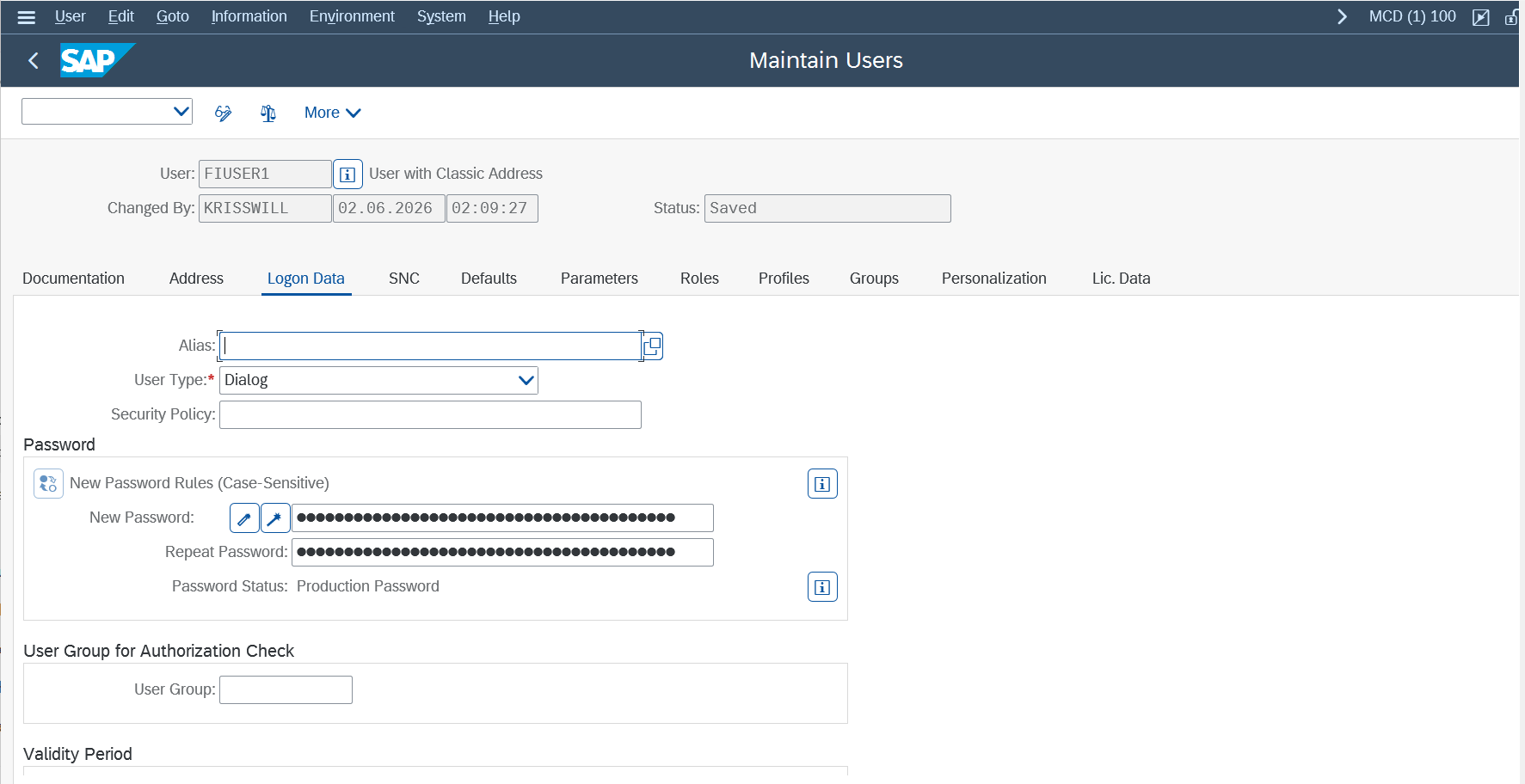

SU01 – User Creation

A new SAP user account was created using transaction SU01. User master data was maintained, including user type and logon credentials. The account was configured as a Dialog User and an initial password was assigned for system access.

sap gui
abap>/nSU01
Operational Observation

The user account was successfully created and activated within the system.

Next Action

Assign the required business role to the newly created user.

02

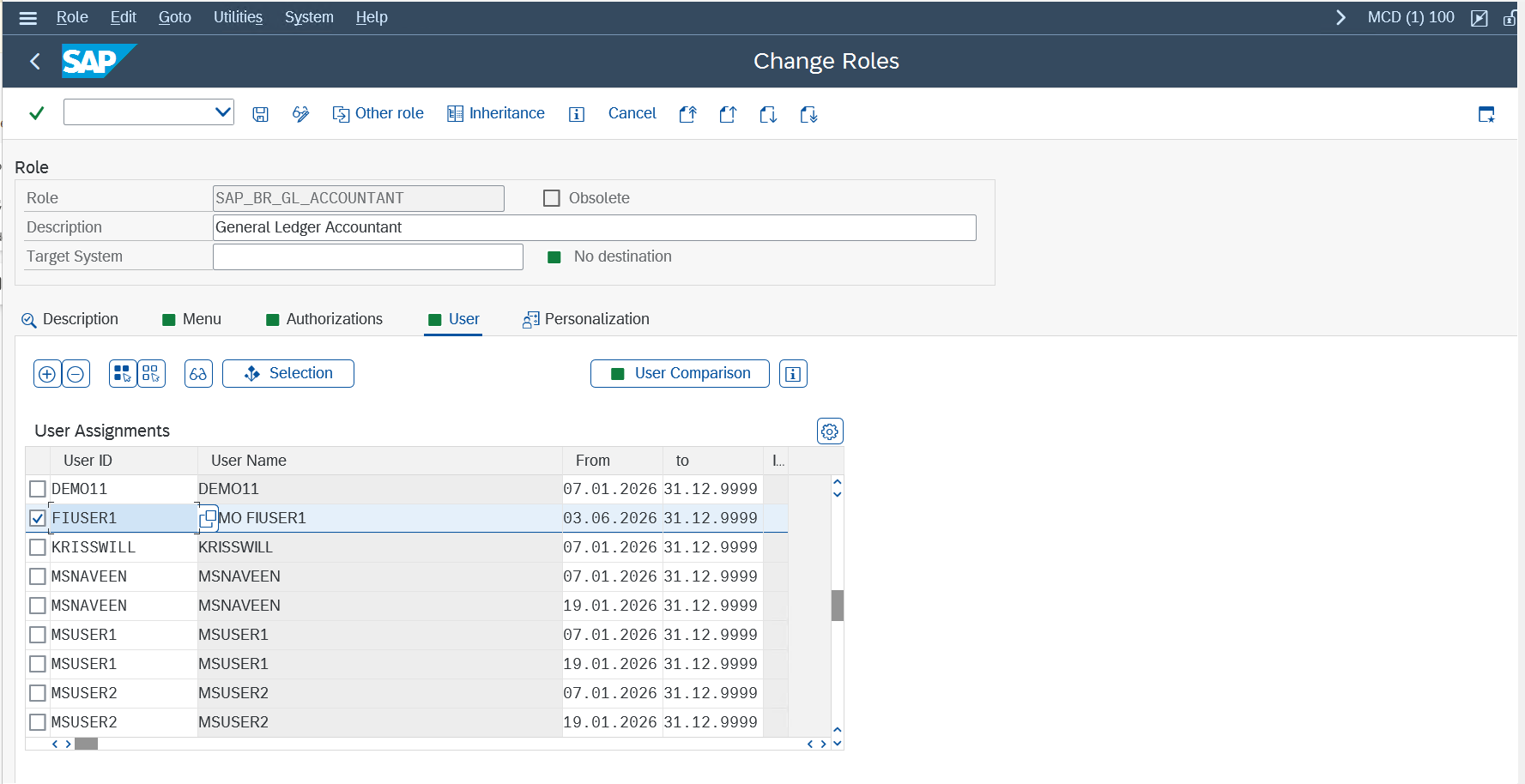

PFCG – Business Role Assignment

Transaction PFCG was used to assign the SAP business role SAP_BR_GL_ACCOUNTANT to the user account. The role assignment was maintained through the User tab within the role definition.

sap gui
abap>/nPFCG
Operational Observation

The user FIUSER1 was assigned to the SAP standard business role SAP_BR_GL_ACCOUNTANT through the User Assignment tab in PFCG.

Next Action

Validate the authorization status of the assigned role.

03

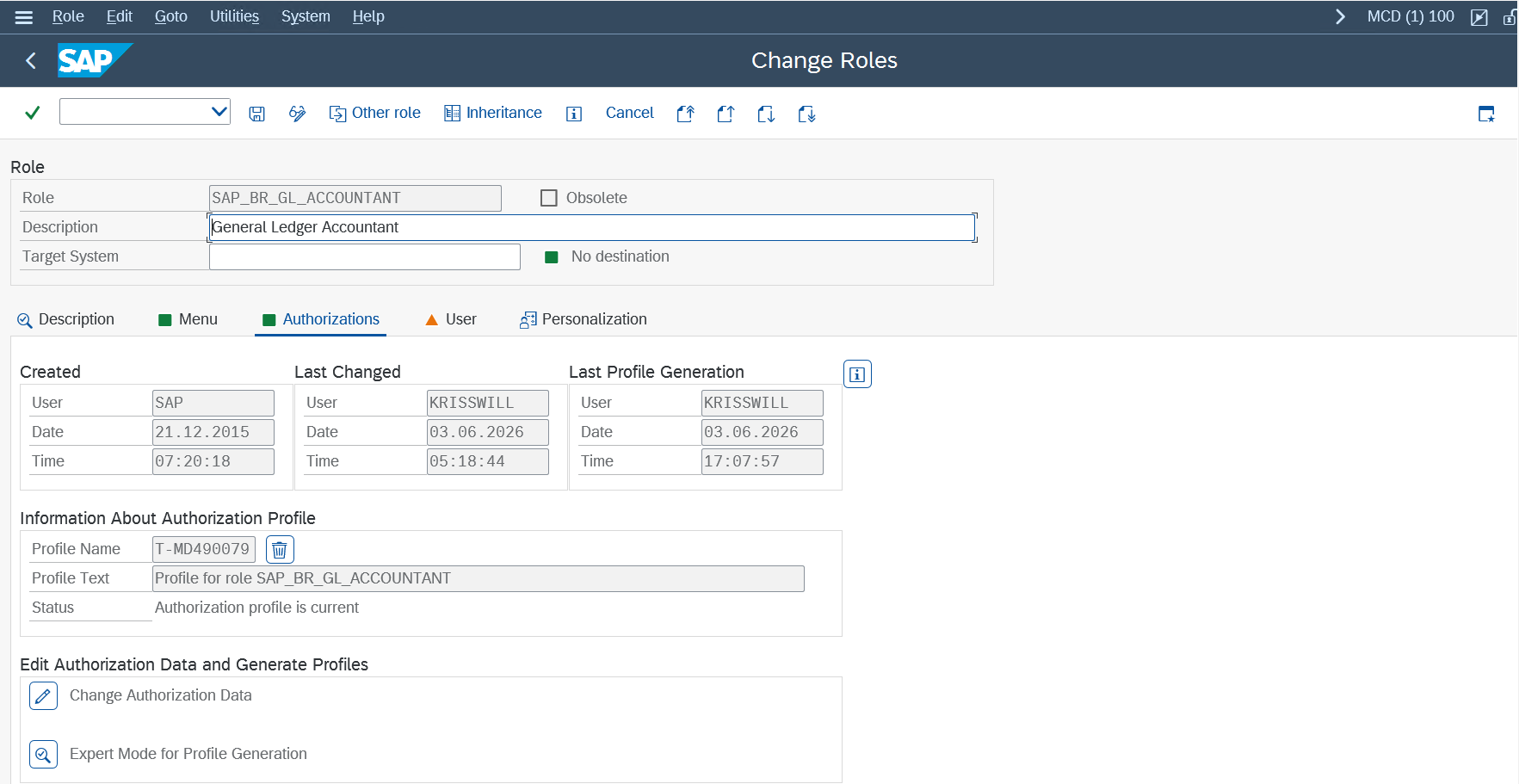

PFCG – Authorization Status Validation

The Authorizations tab was reviewed to verify the authorization status of the assigned business role. The role configuration was examined to confirm that authorization data had been maintained and that the authorization profile had been successfully generated.

Operational Observation

Authorization data was saved successfully, and the authorization profile was shown as current.

Next Action

Execute a user comparison to synchronize the role assignment and authorization profile with the user master record.

04

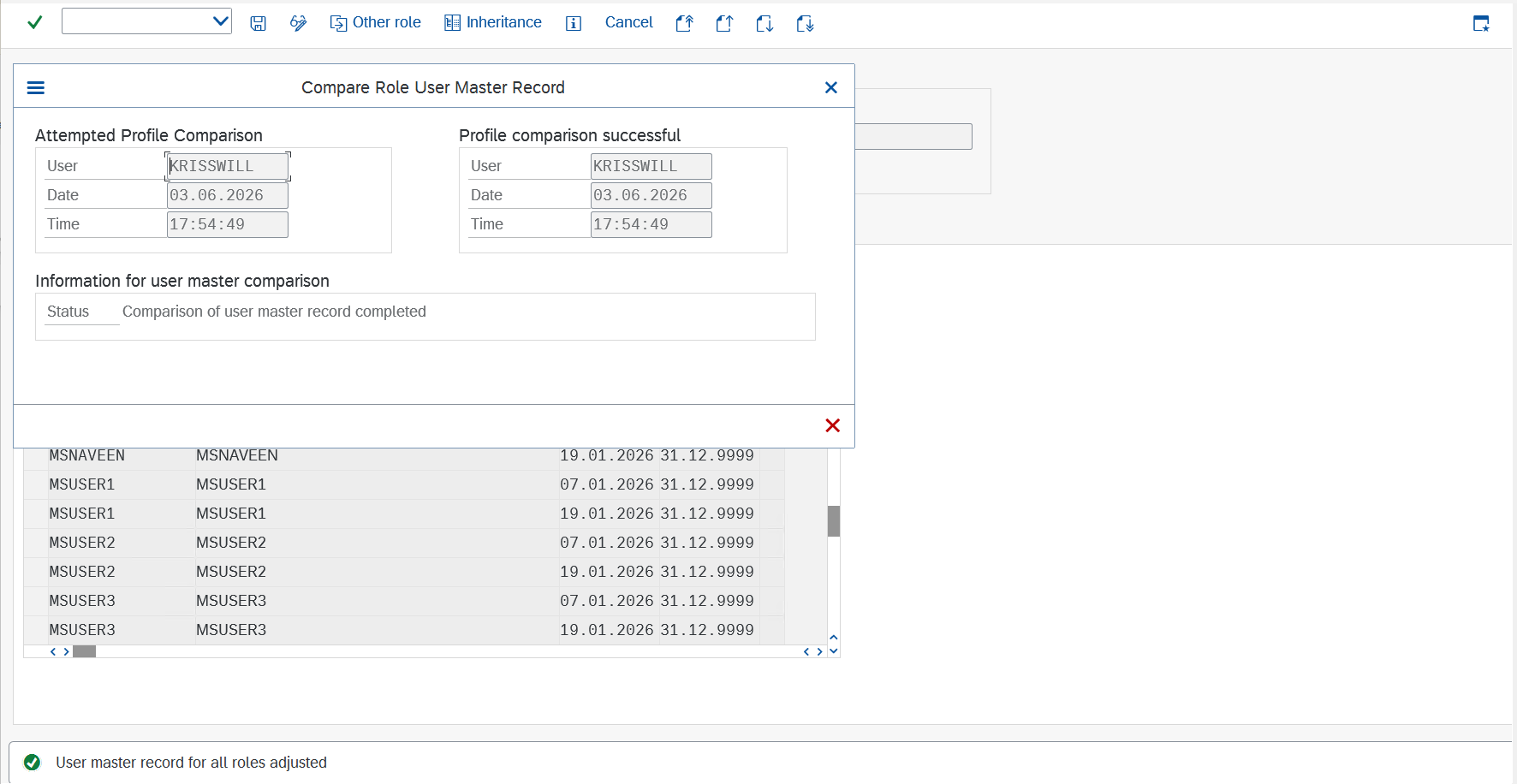

User Comparison Execution

A User Comparison was executed to synchronize the role assignment and authorization profile with the user master record. This process updates the user master data to reflect the permissions assigned through the business role.

Operational Observation

The user comparison completed successfully and the authorization data was synchronized without errors.

Next Action

Verify that the assigned business role is visible within the user master record.

05

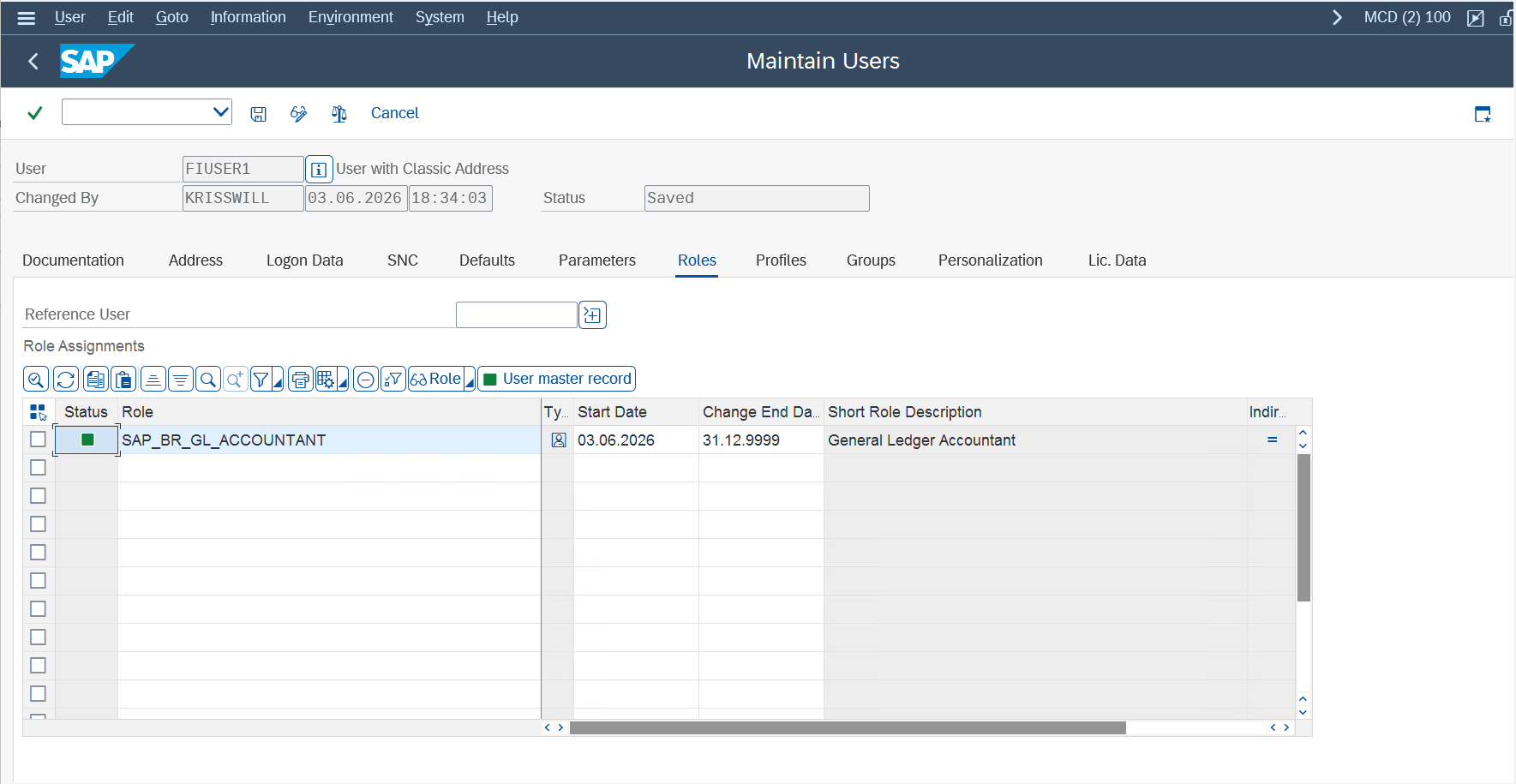

SU01 – User Verification

The user master record was reviewed in transaction SU01 to verify that the assigned business role had been successfully applied to the user account. Role assignment details were validated through the Roles tab.

sap gui
abap>/nSU01
Operational Observation

The assigned business role was visible within the user master record and was available for authorization processing.

/ Project Outcome

This exercise demonstrated the end-to-end process of SAP user provisioning and role assignment using standard SAP administration transactions. The workflow included user creation, business role assignment, authorization profile review, user comparison, and verification of assigned access within the user master record. The exercise highlighted the relationship between user master records, business roles, authorization profiles, and user comparison processing within SAP S/4HANA.

/ Case Study PDF

Operational Summary

Lessons Learned
  • User master data and role assignments must be synchronized through user comparison before authorizations take effect.
  • Authorization profile status in PFCG confirms whether a role is ready for productive use.
  • Verification in SU01 closes the provisioning loop and provides documentary evidence of the assigned access.
Skills Demonstrated
SAP User Administration (SU01)SAP Role Administration (PFCG)Business Role AssignmentAuthorization Profile ReviewUser Comparison ProcessingUser Master Data MaintenanceSAP GUI AdministrationAccess Control FundamentalsTechnical Documentation
